Aqua Guard System
AGS series
Water Washing and Rinsing Devices
-
Always keeps the washing tank in a
clean state and prevents inferior
transcription caused by mold formation! -
Mold/algae formation is an inseparable part of any process that uses water.
Aqua Guard significantly reduces the frequency of cleaning up the washing tanks as it kills the mold and disintegrates the organic dirt. -
- Productivity
UP - Production
stability
UP - Reduced
cost - Labor saving
- Productivity
Product features
-
Controls mold with reactive oxygen
It is the seed fungus spore remaining in the tank or introduced from outside that causes breeding of mold immediately after a maintenance wash. Aqua Guard purifies the tank with OH radicals*1, thereby restraining the formation of mold and always maintaining a clean environment in the tank.
(*1) OH radicals....a type of reactive oxygen (hydroxyl radical)-
Before installation
Mold breeds by feeding on
organic matter -
After installation
Sterilizing the tank from
inside restrains mold formation
-
Before installation
-

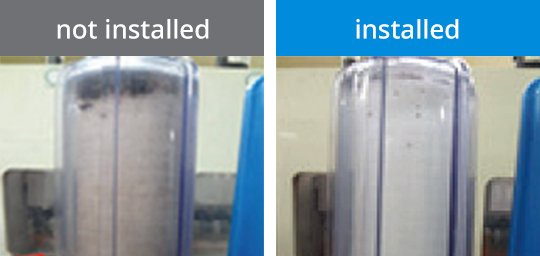

Comparative images when Aqua Guard is installed/not installed
- not installed
- Excessive mold/bacteria formation
- installed
- Almost no change in cleanliness status even after 3 weeks, indicating that it has been restraining the formation of mold/bacteria.
After 3 weeks
After 3 weeks
-
Easy-to-install and low running costs
- Being small-sized, it can fit anywhere and is suitable for various devices (Figure 1)
- Long-life electrodes allow year-long stable operations
(Electrodes need to be changed once a year) - Easy installation as it just needs electrodes
(Can be used just by connected to the electrical outlet) - Low cost as it runs on electricity and does not require chemicals (Less than 3 JPY/hour)
Specifications
Equipment specifications
| Name | Aqua Guard | Model code | AGS series | ||||
|---|---|---|---|---|---|---|---|
| External dimensions (mm) | 320 (W) × 340 (H) × 370 (D) | Electrical source | AC 100 V | ||||
| Electricity consumption | 120 W | Weight | 15 kg | ||||
| Rated pressure | 15 kPa | Appropriate water quantity | 1200 L | ||||
| No. of branches | 5 | Intended use | Cleans and sterilizes the washing tank and prevents mold formation |
||||
