M-SAP enabled AQUA AQCESS CONTROLLER

NAC14000 for development,
NAC13000 for stripping

Automatic Chemical Controller
Na2CO3/K2CO3/TMAH/NaOH/KOH
  • Film development
  • Stripping/film stripping
  • Soldermask development

An ultra-thin substrate can be
produced by high-precision
control of the developing solution

The development process is the most important factor in achieving an ultra-thin substrate. With the AQUA AQCESS CONTROLLER, you can stabilize the developing solution at a FILM concentration of ± 0.5 g/L. Can be used for producing ultra-thin substrates.

  • Productivity
    UP
  • Production stability
    UP
  • Quality stability
    UP
  • Real time
    display
product image

Product features

  • Fine pattern support

    Fine patterns cannot be achieved without a high-precision chemical control. By using the AQUA AQCESS CONTROLLER, the FILM concentration can be controlled at ± 0.5 g/L. Thin line etching is also possible on a clear finish film.

    • After development
      After development

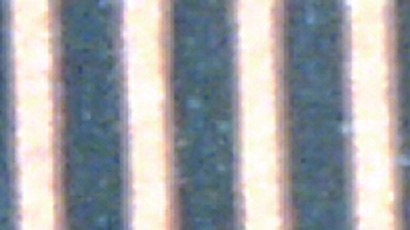

    • After etching
      After etching
  • Production state can be checked any time

    With the logger function, you can instantly check whether the concentration is fluctuating or is stable during the production stage and send a prompt feedback to the production site. This function is a boon for production supervisors.

    These are our unique features
    Various types of sensors
    High-precision/high- stability
    Small-sized/light-weight
    Direct & real time measurements
  • Measurement flow and merits of developing/stripping solutions
    Measurement flow image
    Developed film finish width
    variations (σ)

    Real time advanced control significantly stabilizes the film development finishing process

    Comparison chart

Specifications

Applicable chemicals Na2CO3/K2CO3/TMAH/NaOH/KOH
Model code NAC14000 for film development NAC13000 for stripping
Concentration specifications Na2CO3/K2CO3/TMAH, etc. NaOH/KOH/TMAH, etc.
Display device 12-inch LCD display 12-inch LCD display
Source voltage DC 24 V DC 24 V
External dimensions (mm) / weight 328 (W) × 225 (H) × 99 (D) 4.3 kg 328 (W) × 225 (H) × 99 (D) 4.3 kg

Can also be used for chemicals not mentioned above
